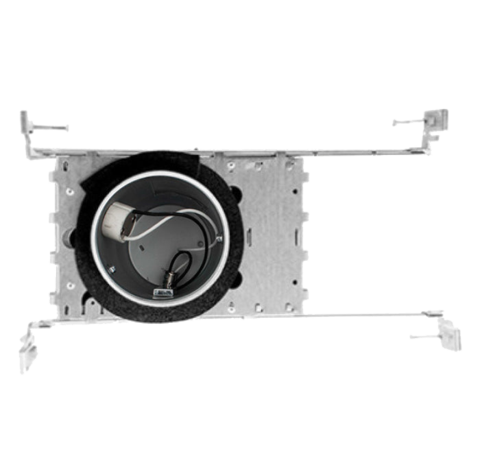

Frame your GU10 lighting installations with confidence using the Luminiz NCIC12 3.5-inch line voltage insulated new construction housing. Built for new construction projects where insulation contact is required, this IC-rated housing delivers a safe, airtight, code-compliant installation — with the heavy-duty construction and installer-friendly features that professionals expect on the job site.

Running at 120V AC line voltage with no transformer required, the NCIC12 accepts standard GU10 base bulbs directly, simplifying your fixture selection and reducing component count. Vertical and horizontal mounting brackets provide flexibility across joist orientations, while the detachable socket and quick push-in connectors keep installation fast and clean.

Model No.: NCIC12-----35-C Size: 3.5 Inch

Electrical Specifications:

• Base: GU10
• Input Voltage: 120V AC
• Output Voltage: 120V AC (line voltage — no transformer required)

Environmental Ratings:

• Operating Temperature: -20°C ~ 45°C
• Humidity: 0% ~ 99%

Key Features:

• Insulation Contact (IC) rated — safe for direct insulation contact
• Airtight construction for energy code compliance
• Stucco blocker for clean tile and exterior-finish installations
• Shut-off sensor for thermal protection
• Quick push-in connectors for fast, tool-free wiring
• Detachable socket for simplified bulb access and replacement
• Vertical and horizontal mounting brackets for flexible joist installation
• Heavy-duty electrical box door for durability and protection
• High-quality construction built for long-term performance

Note: For new construction installations. Installation should be performed by a qualified electrician in accordance with local electrical codes.
