The professional standard for low voltage landscape lighting control. The Luminiz TF106 Transformer Pro series delivers reliable, precision-regulated power to your landscape lighting system — available in 75W, 150W, and 300W capacities to match any installation scale.

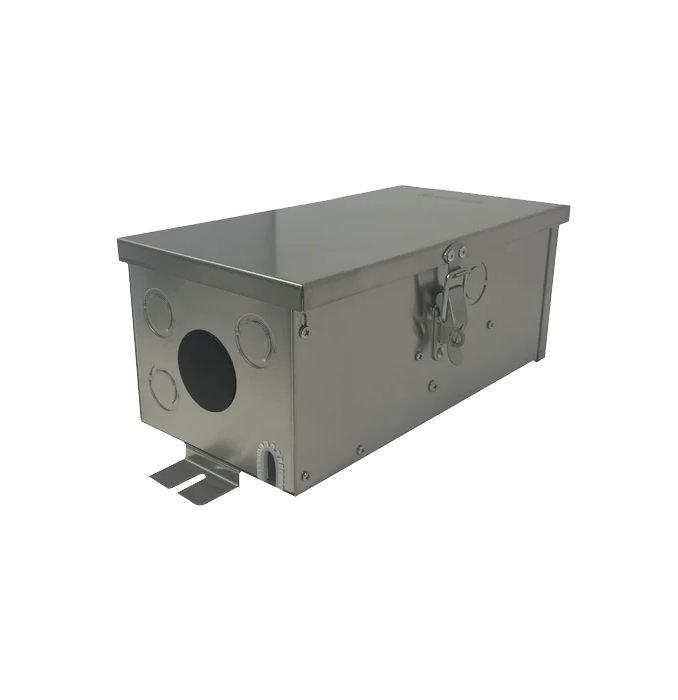

Every model in the TF106 series is built around a heavy-gauge stainless steel enclosure rated IP64 for permanent outdoor installation, and features a 12–15V multi-tap output that gives installers the precision to compensate for voltage drop across long cable runs — ensuring every fixture performs exactly as specified regardless of distance from the transformer.
The Pro designation means more than just power. Each TF106 accepts a suite of pluggable accessories — photocell, timer, and Wi-Fi control socket — that transform a hardwired installation into a fully automated, remotely controllable landscape lighting system without additional controllers or hubs. Install once. Control forever.
Models:
| Model | Power | Best For |
|---|---|---|

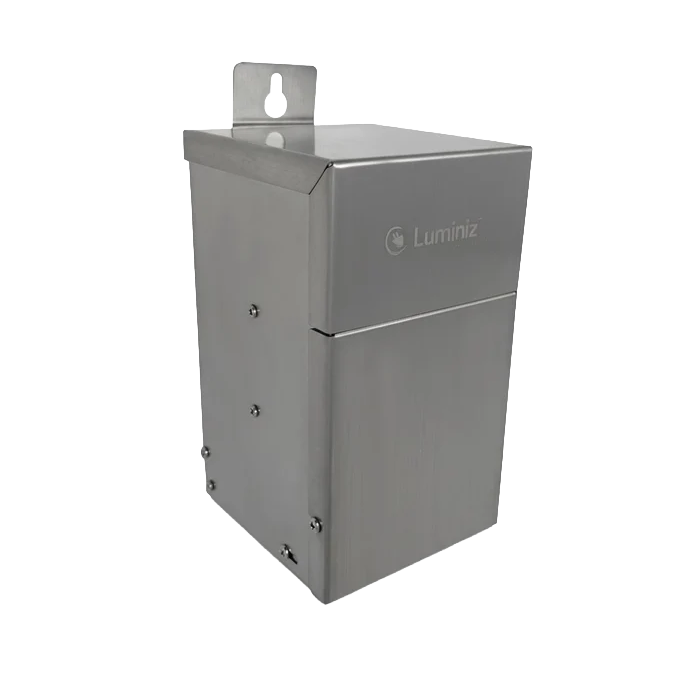

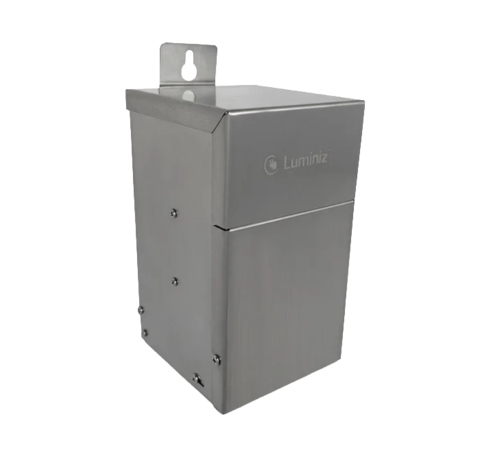

| TF106--75 | 75W | Small residential gardens, focused accent zones |

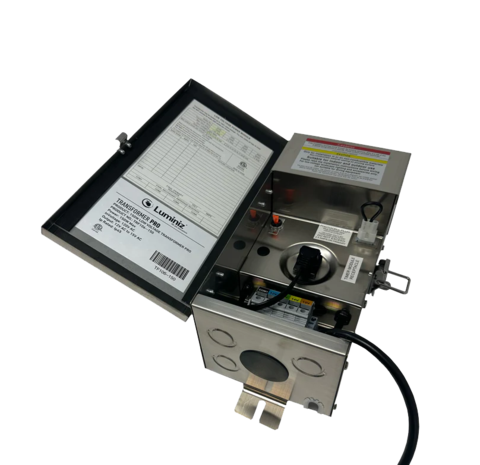

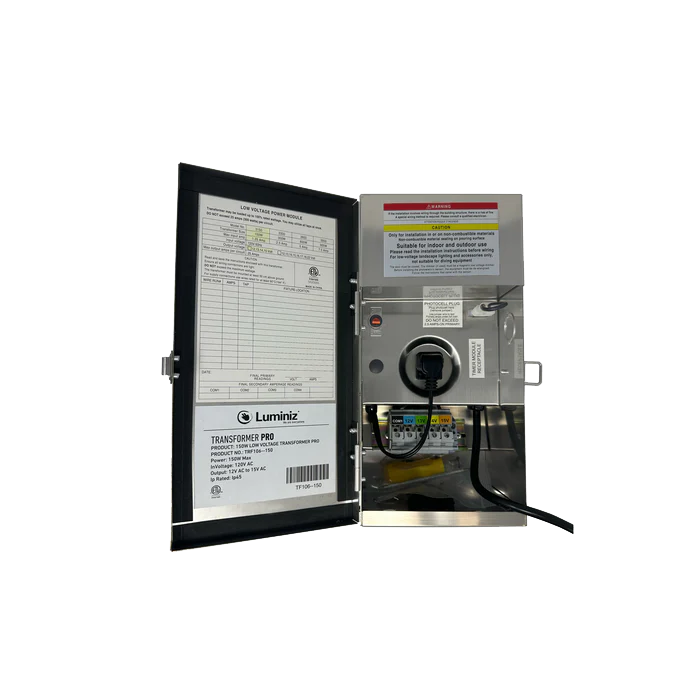

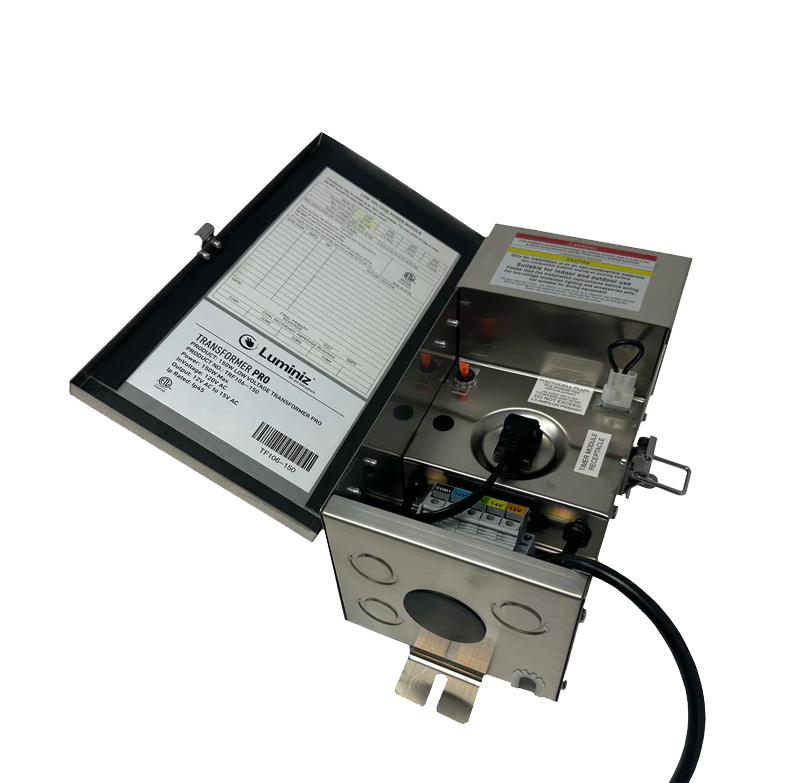

| TF106--150 | 150W | Mid-size residential and multi-zone installations |

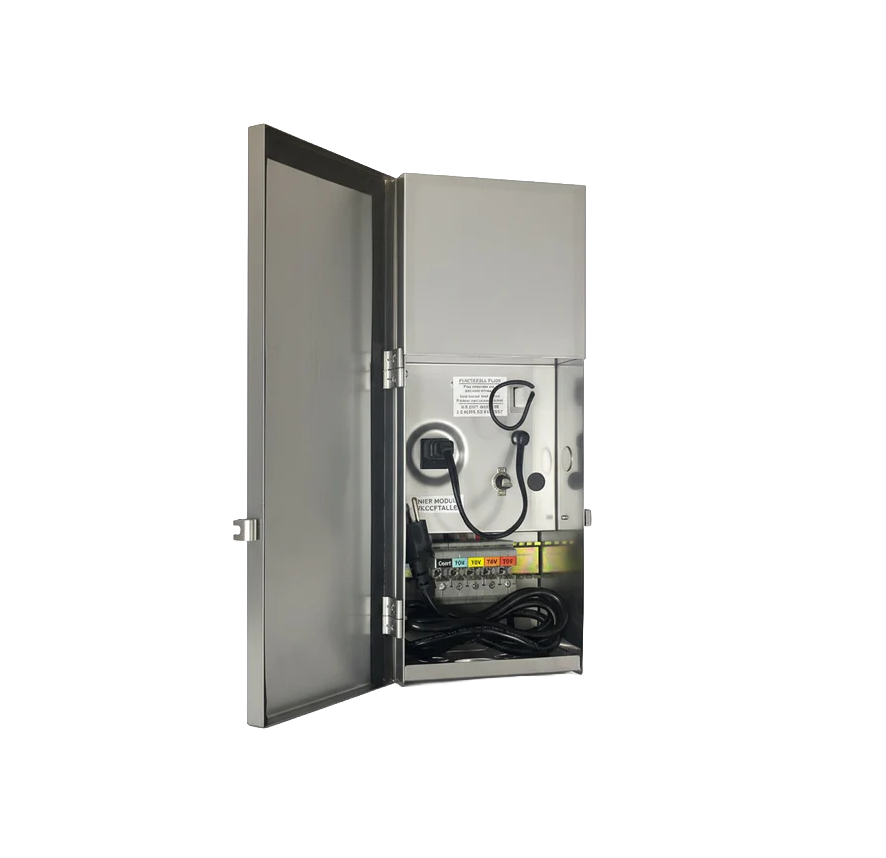

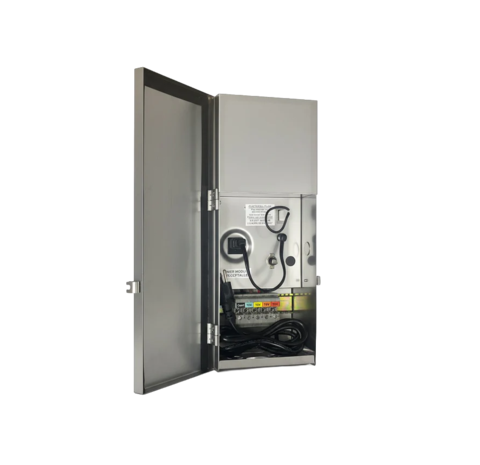

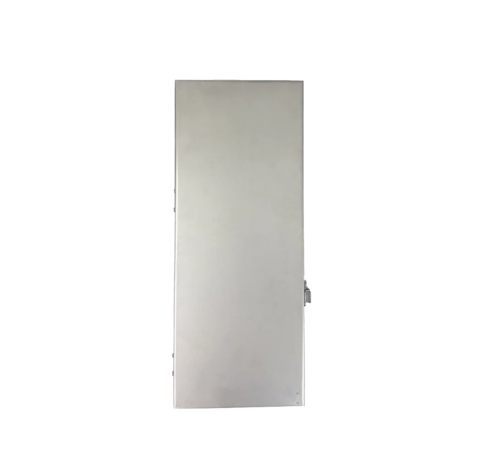

| TF106--300 | 300W | Large-scale residential and commercial installations |
Specifications:
| Input Voltage | 120V AC |
| Output Voltage | 12–15V AC Multi-Tap |
| IP Rating | IP64 |
| Enclosure | Stainless Steel |
| Accessory Ports | Photocell · Timer · Wi-Fi Control Socket (sold separately) |
Key Features:
- Three wattage options — 75W, 150W, and 300W to match any project scale
- 12–15V multi-tap output — compensates for voltage drop on long cable runs

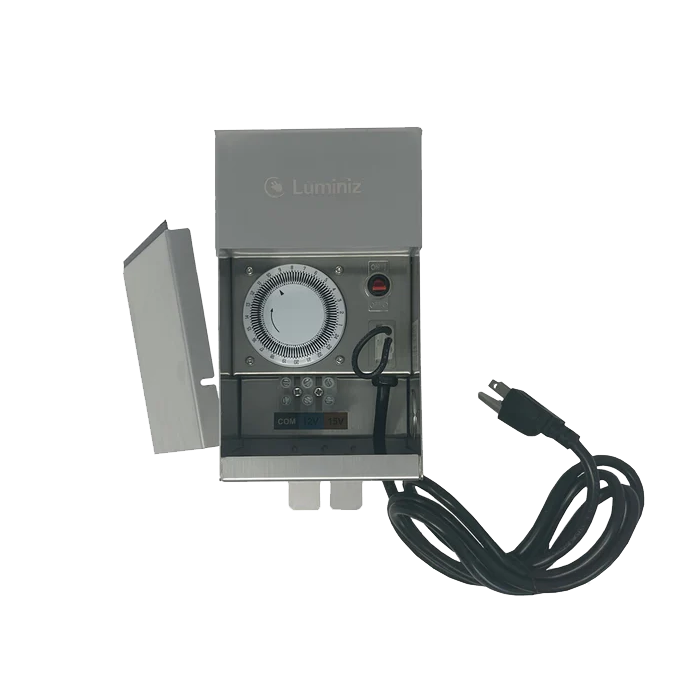

- Pluggable accessory ports for photocell, timer, and Wi-Fi control socket
- IP64 rated — dust-tight and splash-resistant for permanent outdoor installation

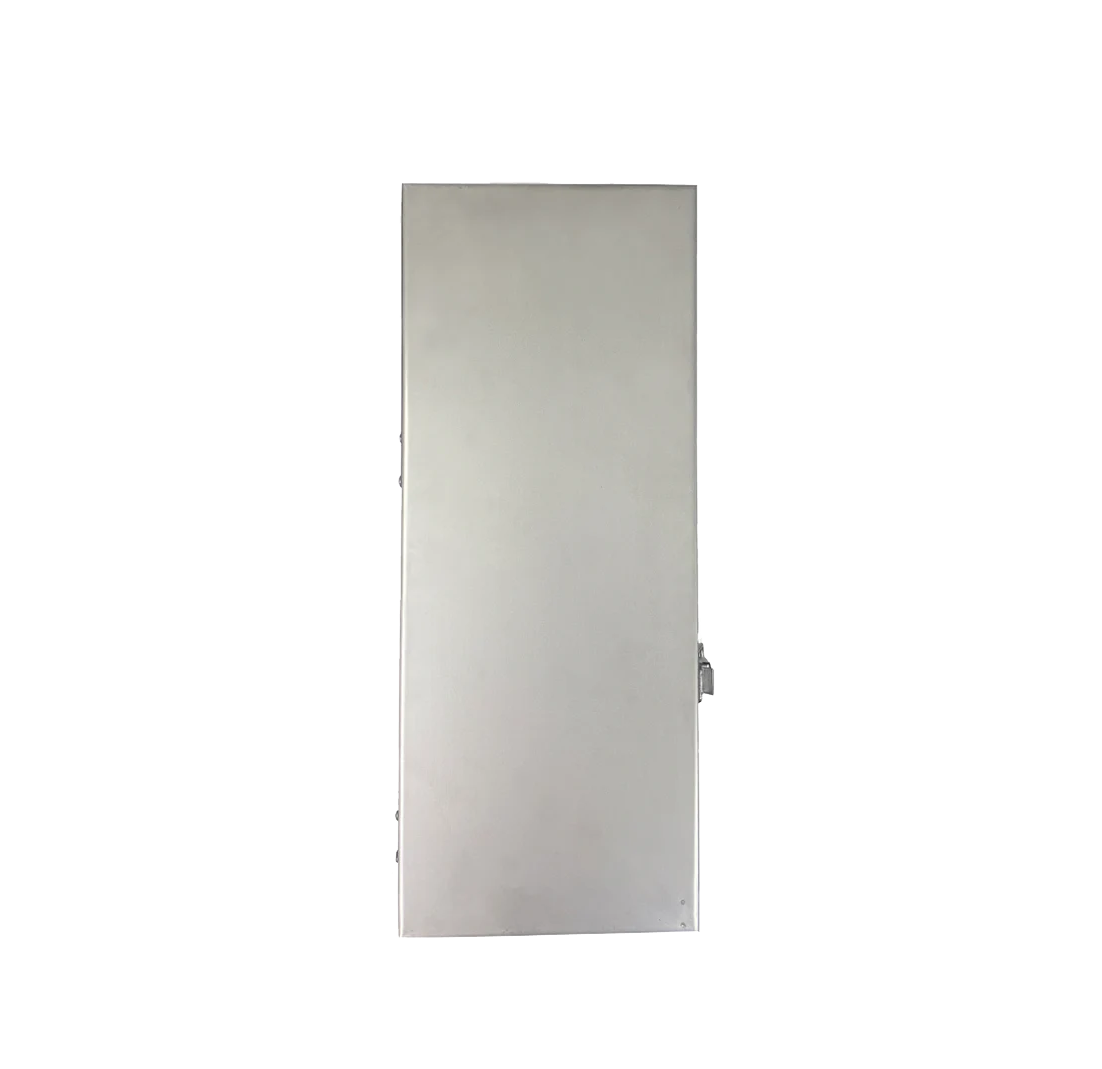

- Heavy-gauge stainless steel enclosure — built for decades of outdoor exposure
- Organized interior with labeled terminal blocks for clean, professional wiring
- 120V AC input — standard line voltage connection
Compatible Accessories: TRFPC01 Photocell · Timer (sold separately) · Wi-Fi Control Socket (sold separately)
Applications: Residential and commercial landscape lighting, pathway lighting, garden lighting, architectural uplighting, large multi-zone outdoor installations.
