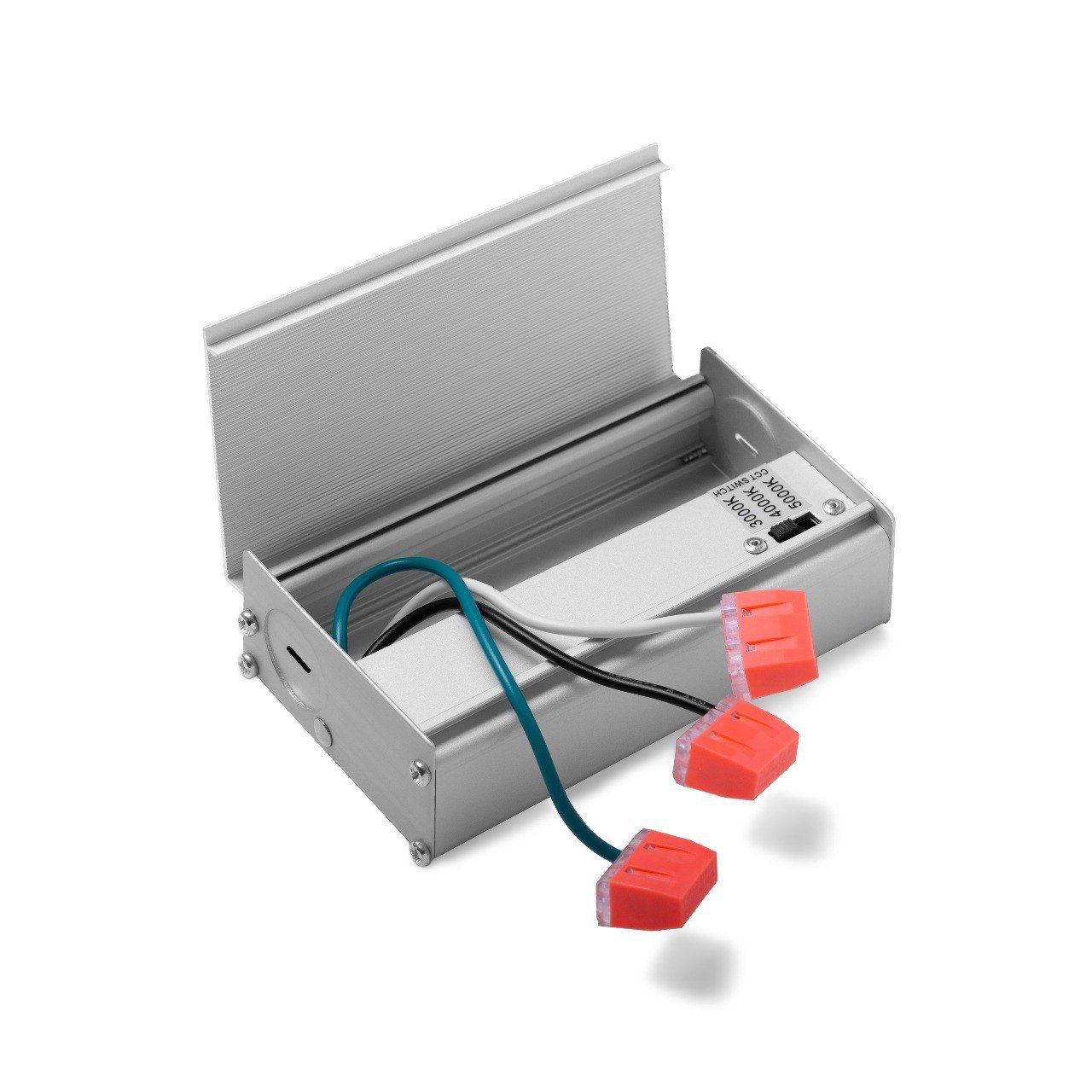

NextGen16 and NextGen20 (Small Driver box)
Video Collections: How Nextgen Works
Downloads Available:
- NG---303CT Specification Sheet
- NG---313CT Specification Sheet
- NG---335CT Specification Sheet
- Dimmer Compatibility List
Details
Details
Description
NG---303CT
NG---313CT
NG---335CT
The next generation of recessed lighting has arrived. NextGen is a modular lighting system with interchangeable trims, inserts and colours.
Tech Specifications

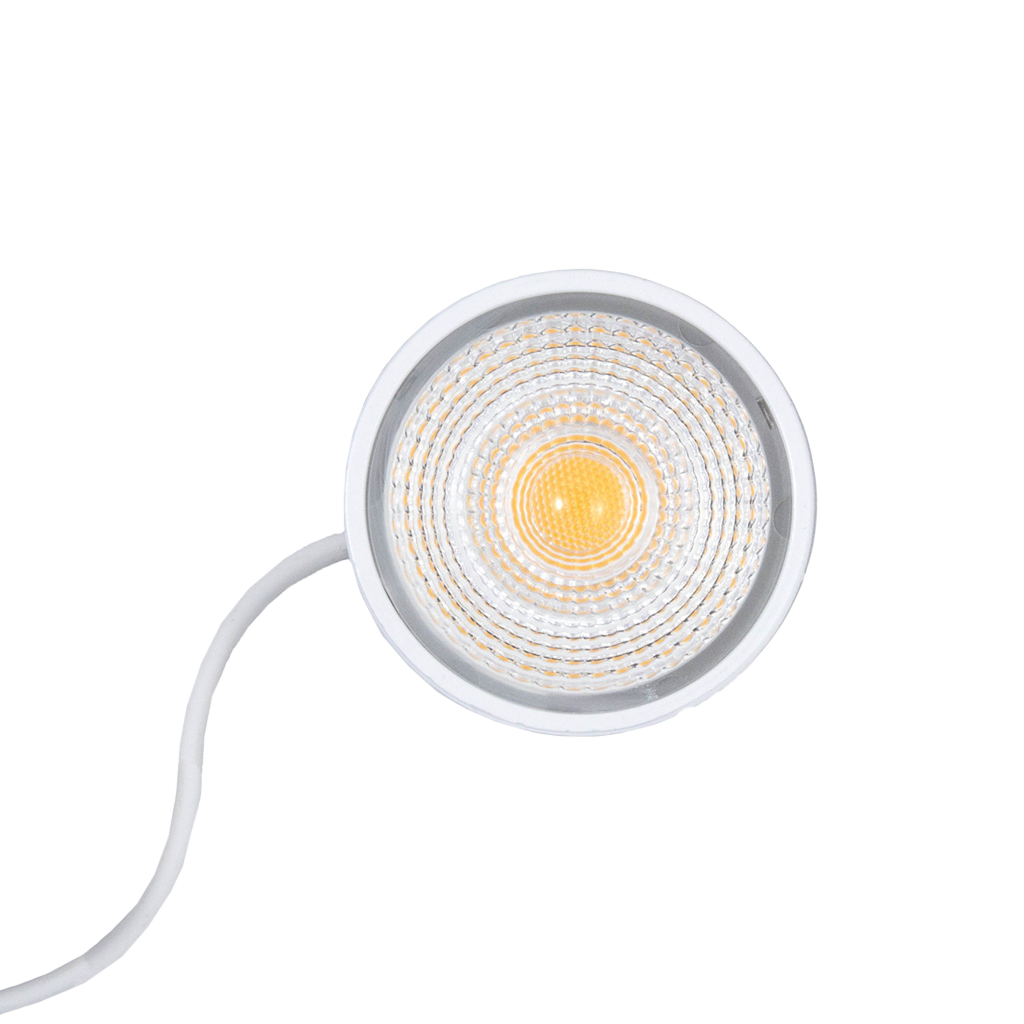

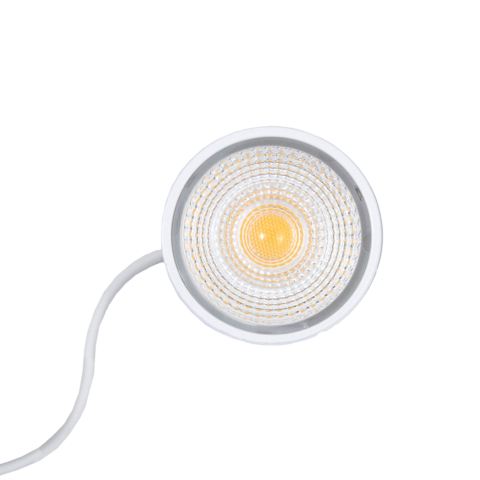

NG---303CT (NEXTGEN16)
| Power: | 9W |
| LED Type: | Bridgelux COB |
| Frequency: | 60hz |
| Luminance: | 720lm |
| Voltage In (Module): | 18-32V DC |
| Voltage in (Driver): | 120V AC |
| CRI: | >80 |
| CCT: | 3000K-5000K |
| Lifespan: | 25,000 |
| Beam Angle: | 40° |

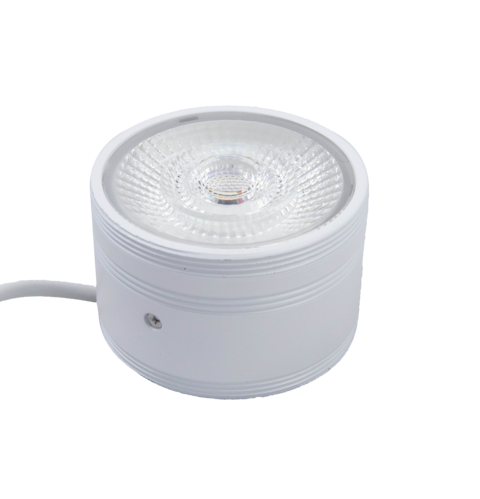

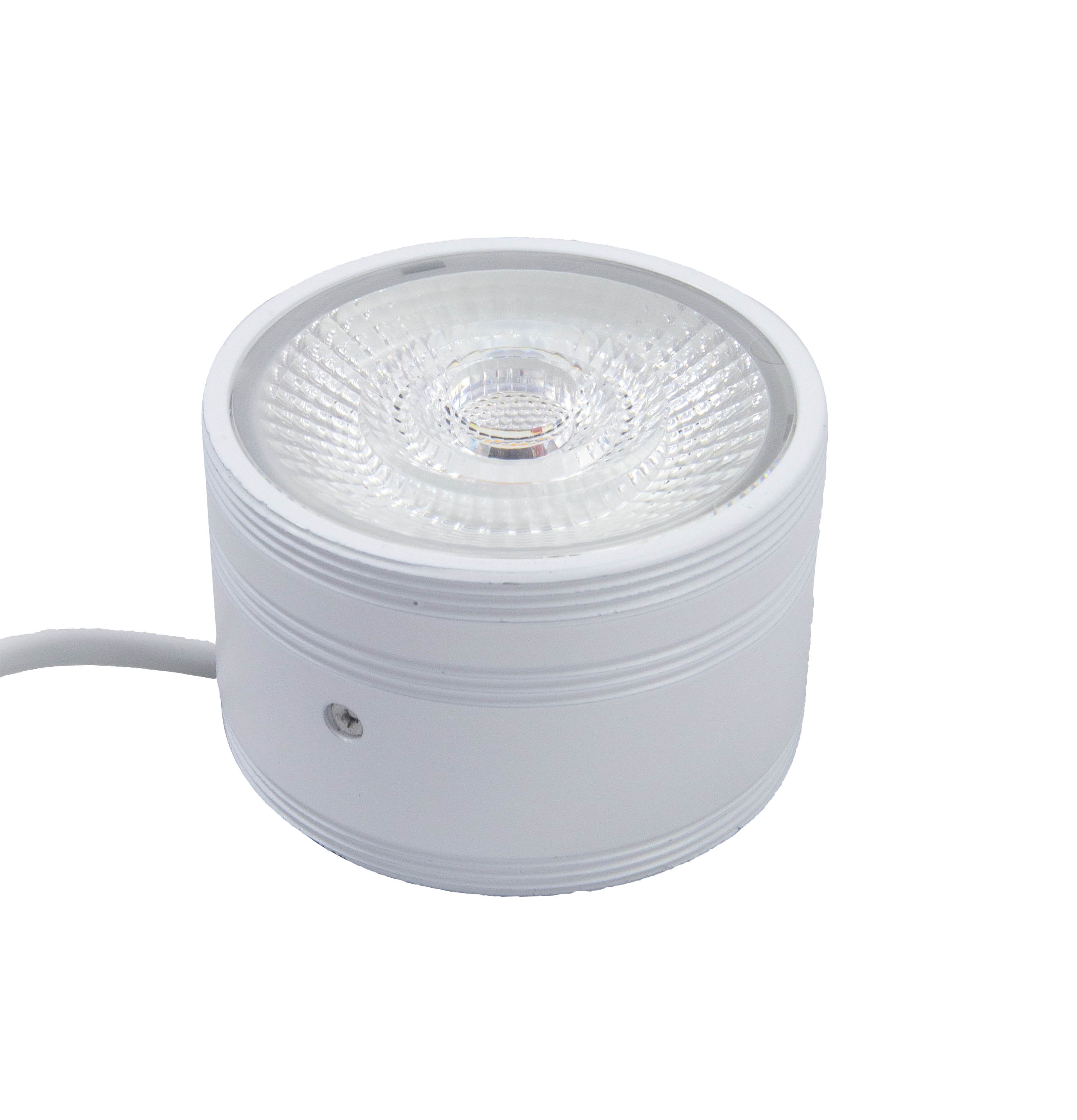

NG---313CT (NEXTGEN 20 3CCT) NG---335CT (NEXTGEN20 5CCT)
| Power: | 15W |
| LED Type: | Bridgelux COB |
| Frequency: | 60Hz |
| Luminance: | 1200Lm |
| Voltage IN (Module): | 35-50V DC |
| Voltage IN (Driver): | 120V AC |
| CRI: | >80 | >90 |
| CCT: | 3CCT - 3000K/4000K/5000K 5CCT - 2700K/3000K/3500K/4000K/5000K |
| Lifespan: | 25,000 hours |
| Beam Angle: | 40° |
