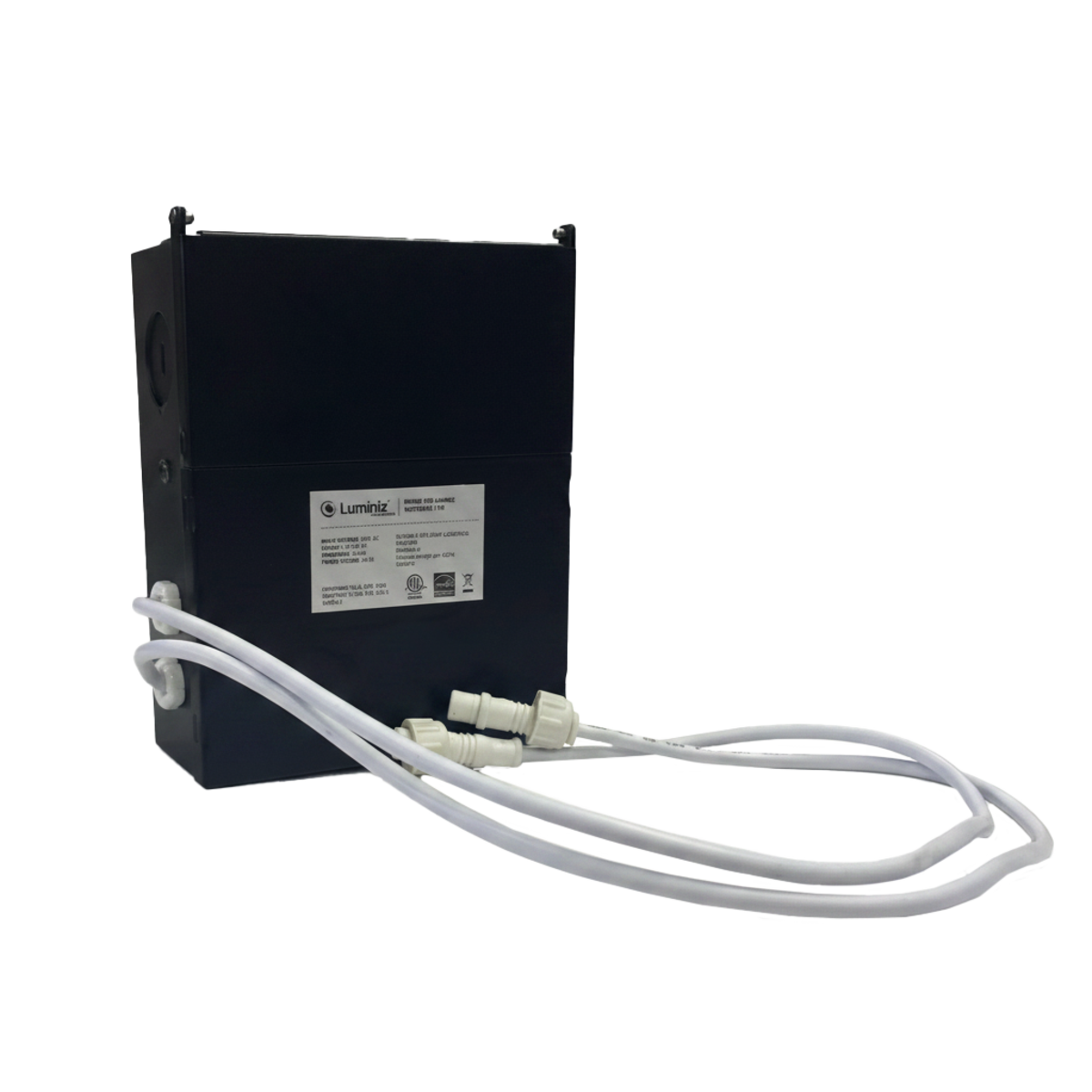

One driver. Multiple fixtures. Maximum flexibility. The Luminiz NextGen Multi-Head Driver series powers single or multiple NextGen PAR16 and PAR20 modules from a single compact driver — simplifying wiring, reducing hardware count, and delivering clean, consistent low-voltage DC output across every head in the run.
Available in Single, Double, Triple, and Quad configurations for PAR16, and Double, Triple, and Quad for PAR20 — with both 1CCT (fixed colour temperature) and 3CCT (field-selectable 3000K / 4000K / 5000K) variants across the lineup. Whether you're specifying a fixed-CCT commercial installation or a tunable residential application, there's a driver in this series built for the job.
All models are fully dimmable, UL Listed, and rated for damp locations.
PAR16 Driver Series — 9W per Module | Output: 18–32V DC
| Model | Configuration | Heads | Input Current | CCT |
|---|---|---|---|---|
| DR10101 | Single | 1 × 9W | 0.1A | 1CCT |

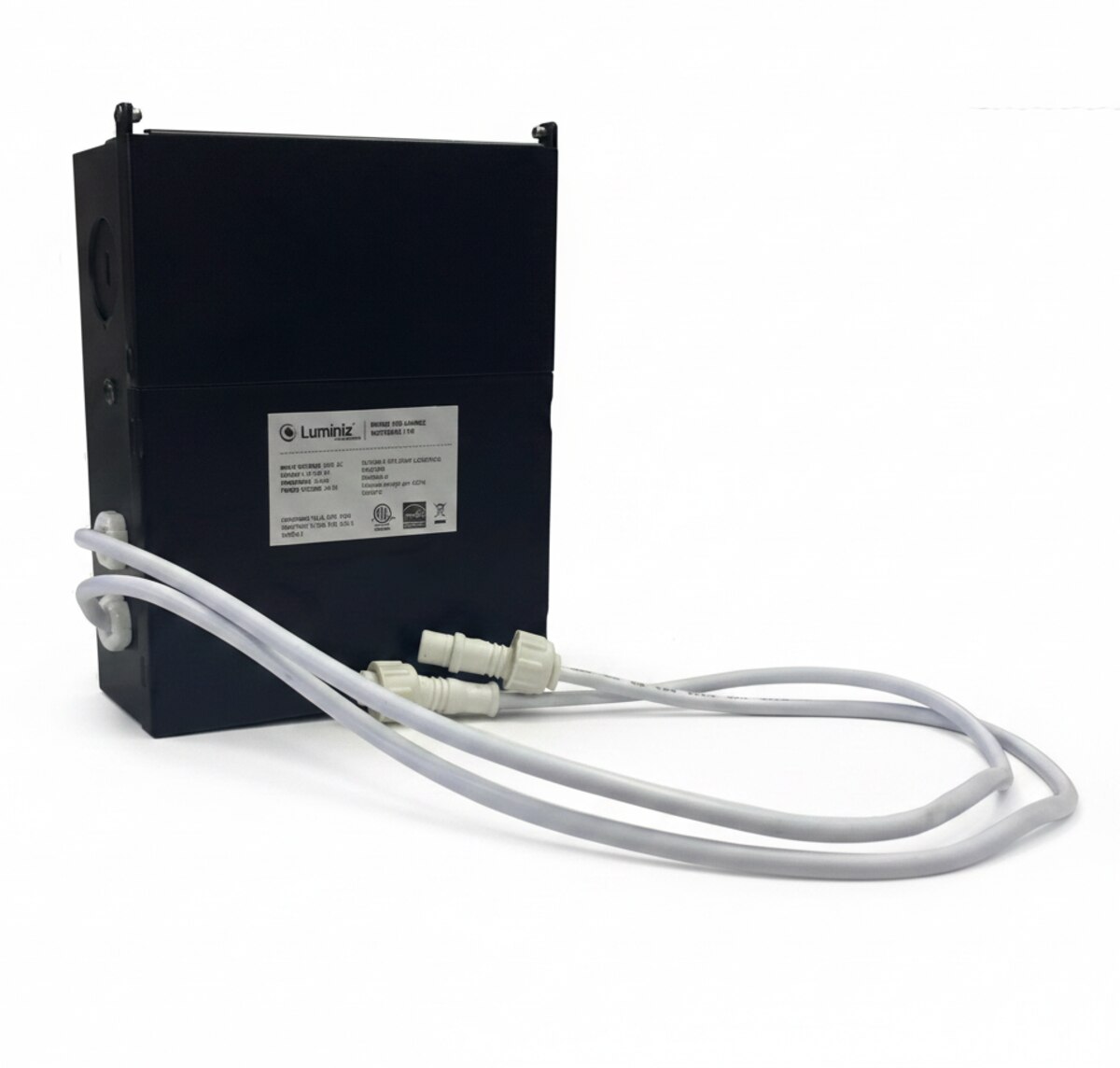

| DR10102 | Double | 2 × 9W | 0.15A | 1CCT |

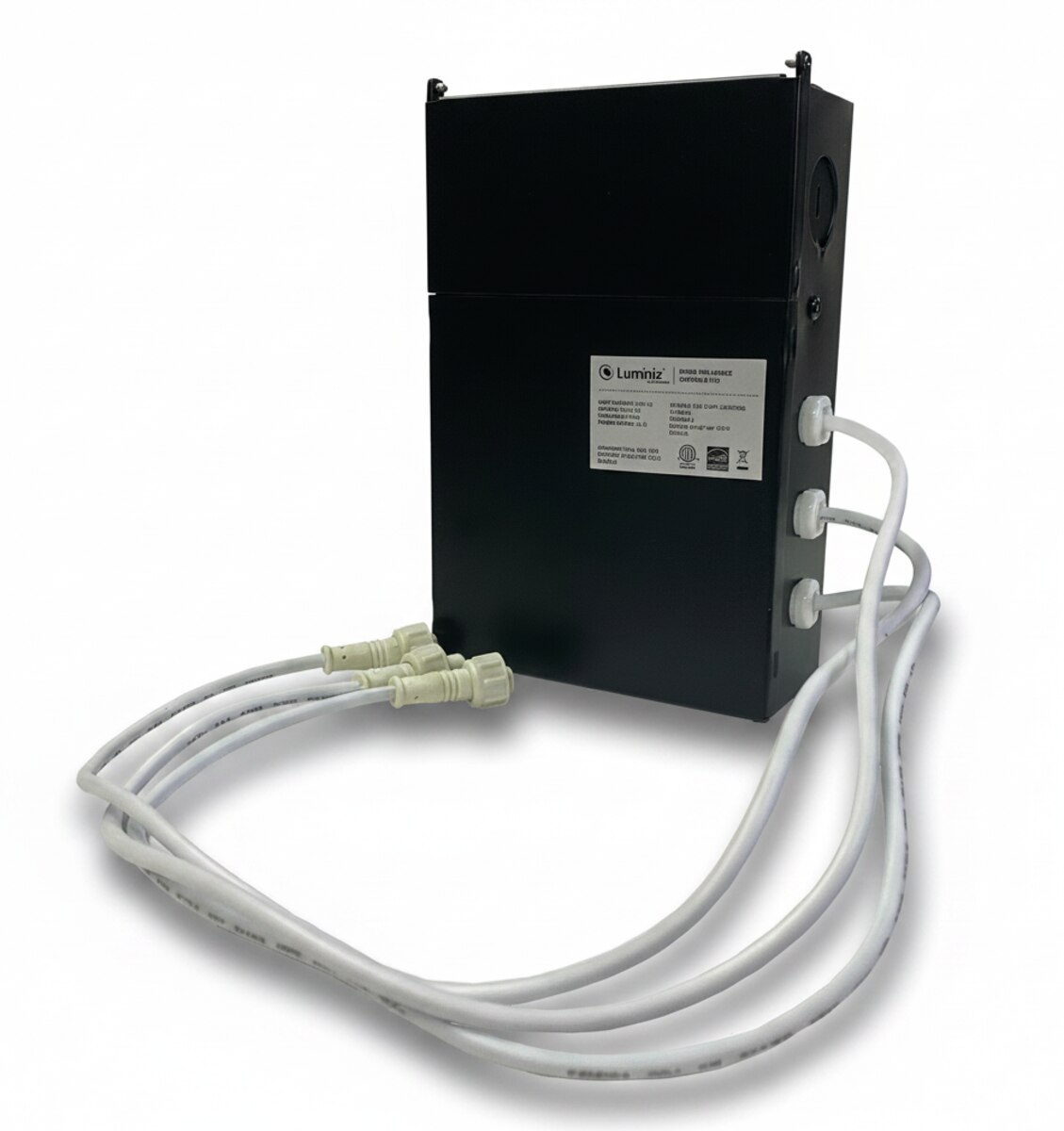

| DR10103 | Triple | 3 × 9W | 0.225A | 1CCT |

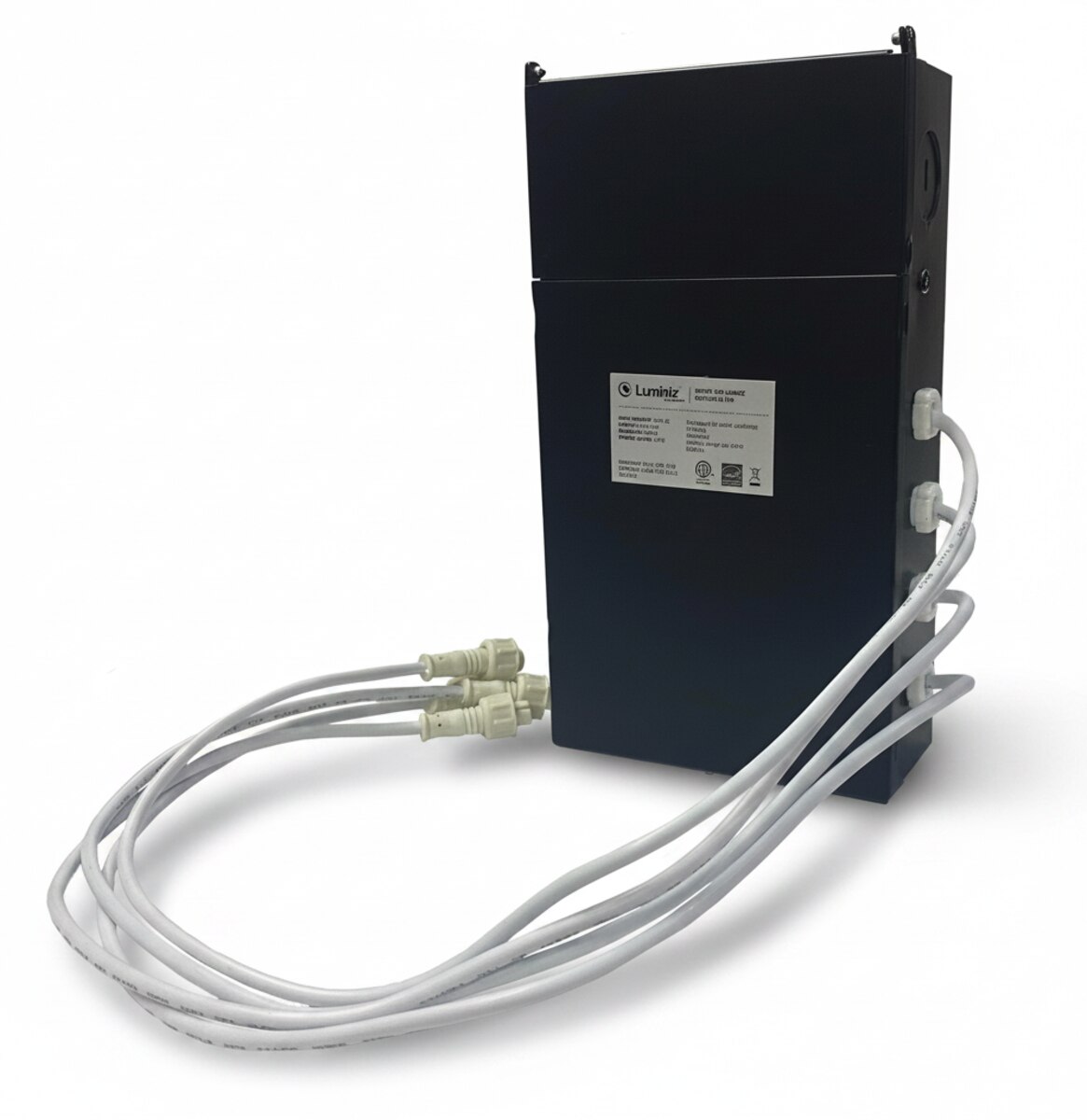

| DR10104 | Quad | 4 × 9W | 0.3A | 1CCT |
| DR10302 | Double | 2 × 9W | 0.15A | 3CCT (3000K/4000K/5000K) |
| DR10303 | Triple | 3 × 9W | 0.225A | 3CCT (3000K/4000K/5000K) |
| DR10304 | Quad | 4 × 9W | 0.3A | 3CCT (3000K/4000K/5000K) |
PAR20 Driver Series — 15W per Module | Output: 35–50V DC
| Model | Configuration | Heads | Input Current | CCT |
|---|---|---|---|---|
| DR10202 | Double | 2 × 15W | 0.25A | 1CCT |
| DR10203 | Triple | 3 × 15W | 0.375A | 1CCT |
| DR10204 | Quad | 4 × 15W | 0.5A | 1CCT |
| DR10402 | Double | 2 × 15W | 0.25A | 3CCT (3000K/4000K/5000K) |
| DR10403 | Triple | 3 × 15W | 0.375A | 3CCT (3000K/4000K/5000K) |
| DR10404 | Quad | 4 × 15W | 0.5A | 3CCT (3000K/4000K/5000K) |
Shared Specifications:
| Input Voltage | 120V AC |
| Output Current | 300mA |
| Frequency | 60 Hz |
| Power Factor | ≥0.95 |
| Dimmable | Yes |
| Location Rating | Damp |
Key Features:
- Single driver powers 1, 2, 3, or 4 NextGen modules simultaneously
- PAR16 (9W/module) and PAR20 (15W/module) series available
- 1CCT and 3CCT variants — fixed or field-selectable colour temperature
- Fully dimmable — compatible with standard line-voltage dimmers
- Damp location rated for versatile indoor and covered outdoor installation
- Compact enclosure with pre-wired output leads
- UL Listed
Individual spec sheets available on each child product page.
