RGB LED Tape Light Controller with RF Remote
Details
Details

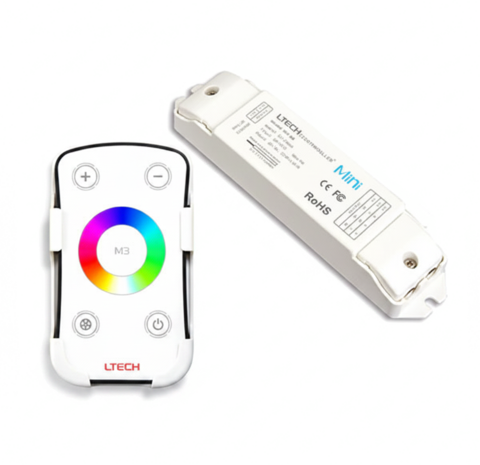

Take full command of your RGB tape light installation with the CTTL02RGB — a compact RF-based LED controller and remote set designed exclusively for use with Luminiz RGB Tape Light Drivers. Unlike standard infrared remotes, this system operates on a 433.92 MHz radio frequency signal, delivering reliable wireless control up to 40–50 metres and penetrating walls and obstructions that would block a line-of-sight IR remote.
The touch-wheel remote puts intuitive colour selection, brightness dimming, and dynamic scene modes at your fingertips — making it equally suited for residential accent lighting and commercial RGB installations where ease of control matters.
⚠️ For use with Luminiz RGB Tape Light Driver only.
RF Remote Control (CR2032 Battery):
| Working Voltage | DC 3V (CR2032) |
| Frequency | 433.92 MHz |
| Remote Distance | 40–50m |
| Working Temp. | -20°C ~ 55°C |
| Dimensions | 104 × 60 × 9mm |
| Weight | 42g |
M3-3A Receiver Controller:
| Input Voltage | DC 12V – 24V |
| Max Current Load | 3A × 3CH |
| Max Output Power | 108W (12V) / 216W (24V) |
| Working Temp. | -30°C ~ 55°C |
| Dimensions | 135 × 30 × 20mm |
| Weight | 47g |
Key Features:
- RF 433.92 MHz signal — wall-penetrating, no line-of-sight required
- 40–50m wireless range
- Touch colour wheel for intuitive RGB colour selection
- Dynamic scene and mode cycling for ambient effects
- Compatible with 12V and 24V RGB systems
- Compact receiver fits neatly in junction boxes and profiles
