WiFi & Bluetooth LED Controller — RGB / RGBW Tape Light
Downloads:
Details
Details

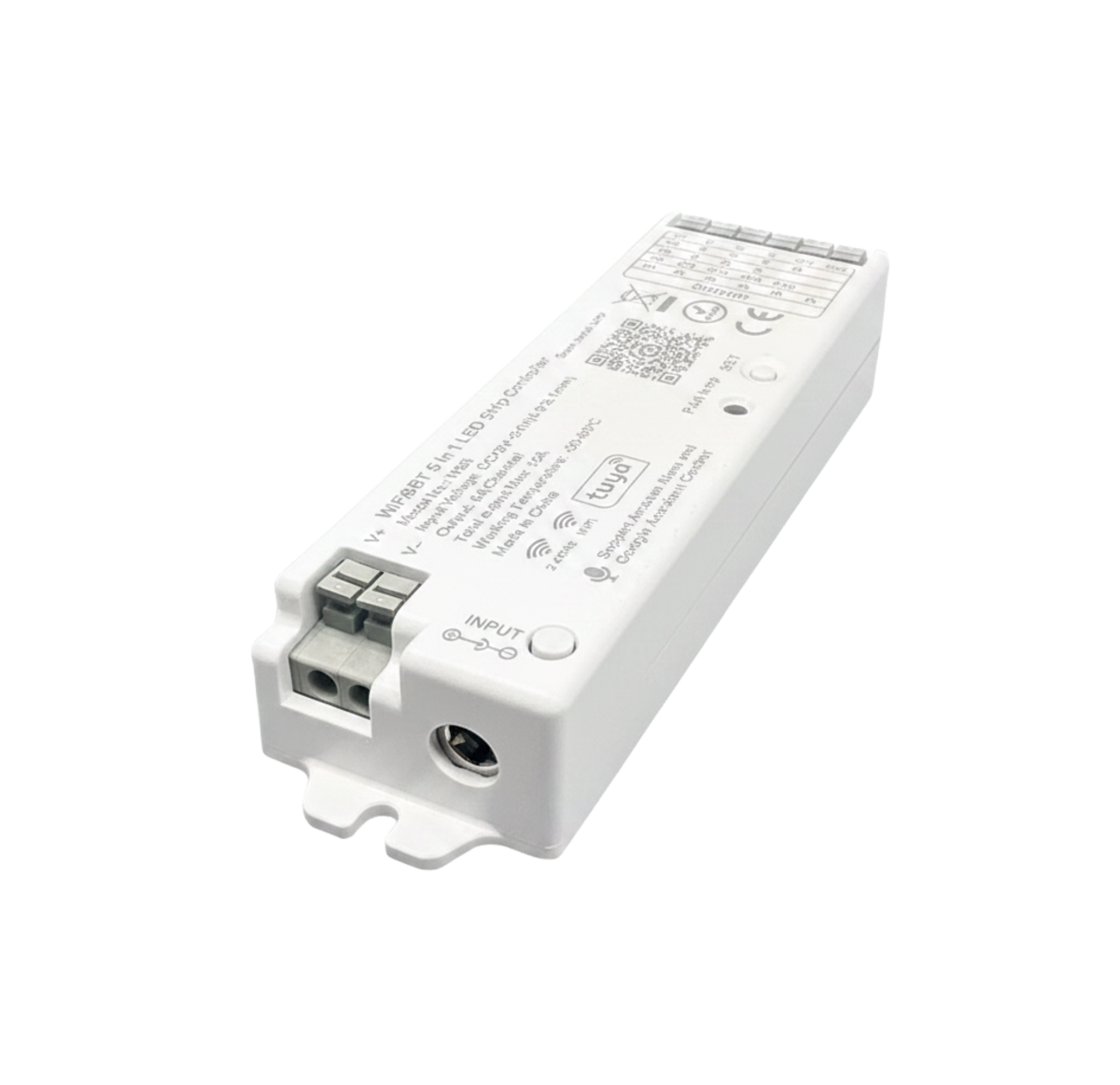

Bring your RGB and RGBW tape light installations into the smart home era. The CTTL04RGBWW is a 5-in-1 WiFi and Bluetooth LED strip controller compatible with a wide range of colour and tunable white tape light configurations — and fully integrated with the Tuya Smart platform for seamless app, voice, and automation control.
Control your lights from anywhere via the Tuya Smart app, set schedules and timers, sync to music, or simply ask Alexa or Google Assistant to do it for you. With 16 million colours, full dimming, and colour temperature adjustment from 2700K to 6500K, this controller delivers professional-grade flexibility in a compact, DIN-mountable package.
Compatible with: RGB and RGBW LED tape light systems (DC 12V–24V)
Specifications:
| Input Voltage | DC 12V – 24V (5.5×2.1mm) |
| Output per Channel | 6A |
| Total Max Output | 15A |
| Working Temperature | -20°C ~ 60°C |
| Wireless | 2.4GHz WiFi + Bluetooth |
| Colour Range | 16 Million Colours |
| CCT Range | 2700K – 6500K |
Key Features:
- Amazon Alexa and Google Assistant voice control
- Tuya Smart app control — iOS and Android
- 2.4GHz WiFi + Bluetooth dual wireless connectivity
- 16 million colour selection with full dimming and saturation control
- Music rhythm sync mode
- Colour temperature adjustment 2700K–6500K
- Scheduling, countdown, and timer functions
- Scene customization and device sharing
- Link / Unlink / Reset button on controller
- Third-party voice control support
