Slimlite 120 Ultra-Thin LED Downlight
Details
Details
No driver. No transformer. No compromise. The Luminiz Slimlite 120 is an ultra-thin direct-wire LED downlight that connects straight to 120V AC — eliminating the need for external drivers or transformers entirely. At just 1 inch (4") or 1.1 inches (6") in height, it fits directly into standard 4" octagon and junction boxes, making it the go-to solution for low-ceiling installations, closets, bathrooms, covered outdoor areas, and retrofit projects where depth is at a premium.
IC-rated, airtight, and fully waterproof — the Slimlite 120 is equally at home in a shower ceiling as it is in a living room or covered porch. Powered by Everlight LEDs with a lifespan of 36,000 hours, it delivers high lumen output at low wattage with a wide 105° beam angle for broad, even coverage. Available in 3000K and 4000K, with or without an integrated junction box.
Available Models:

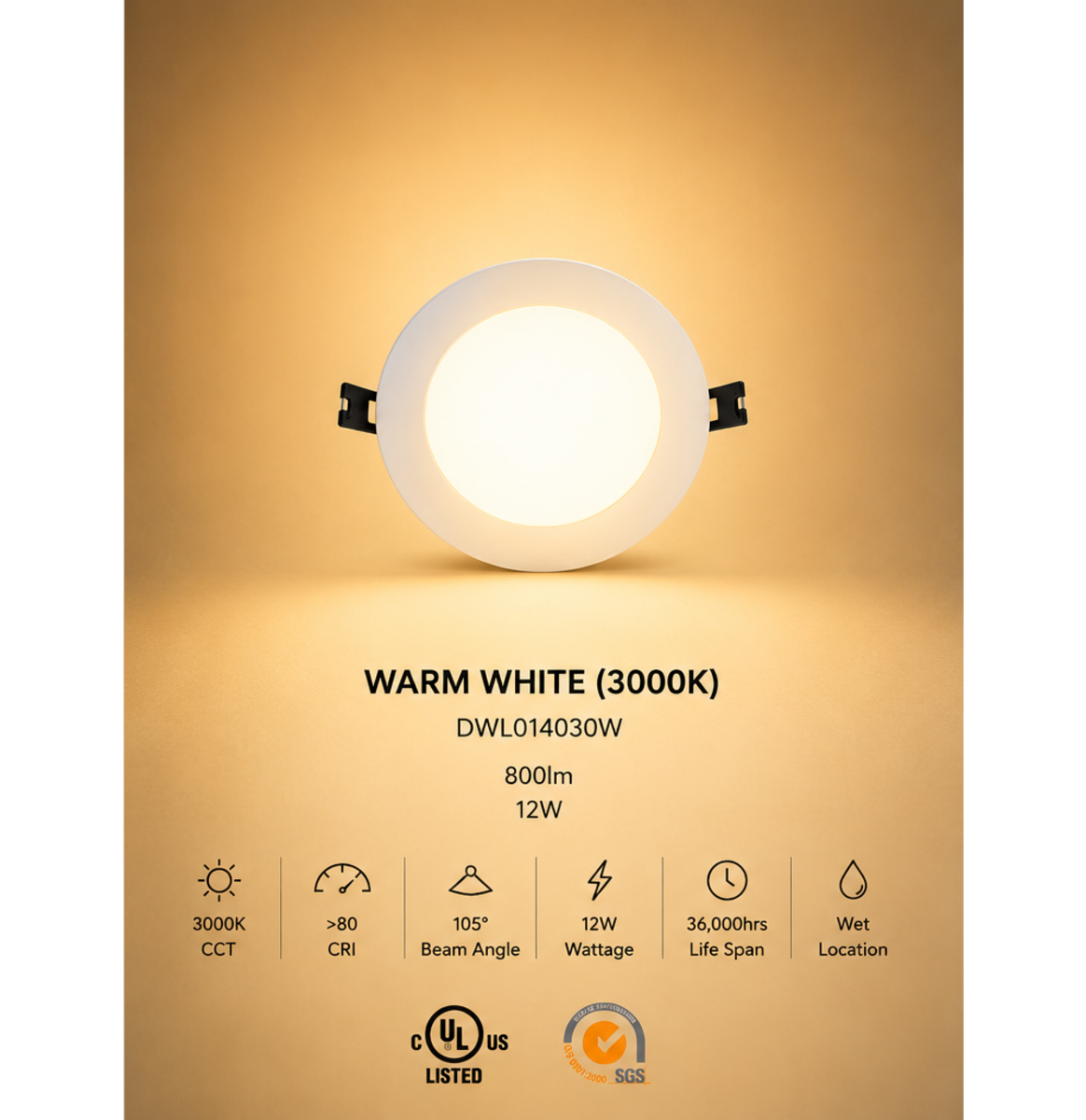

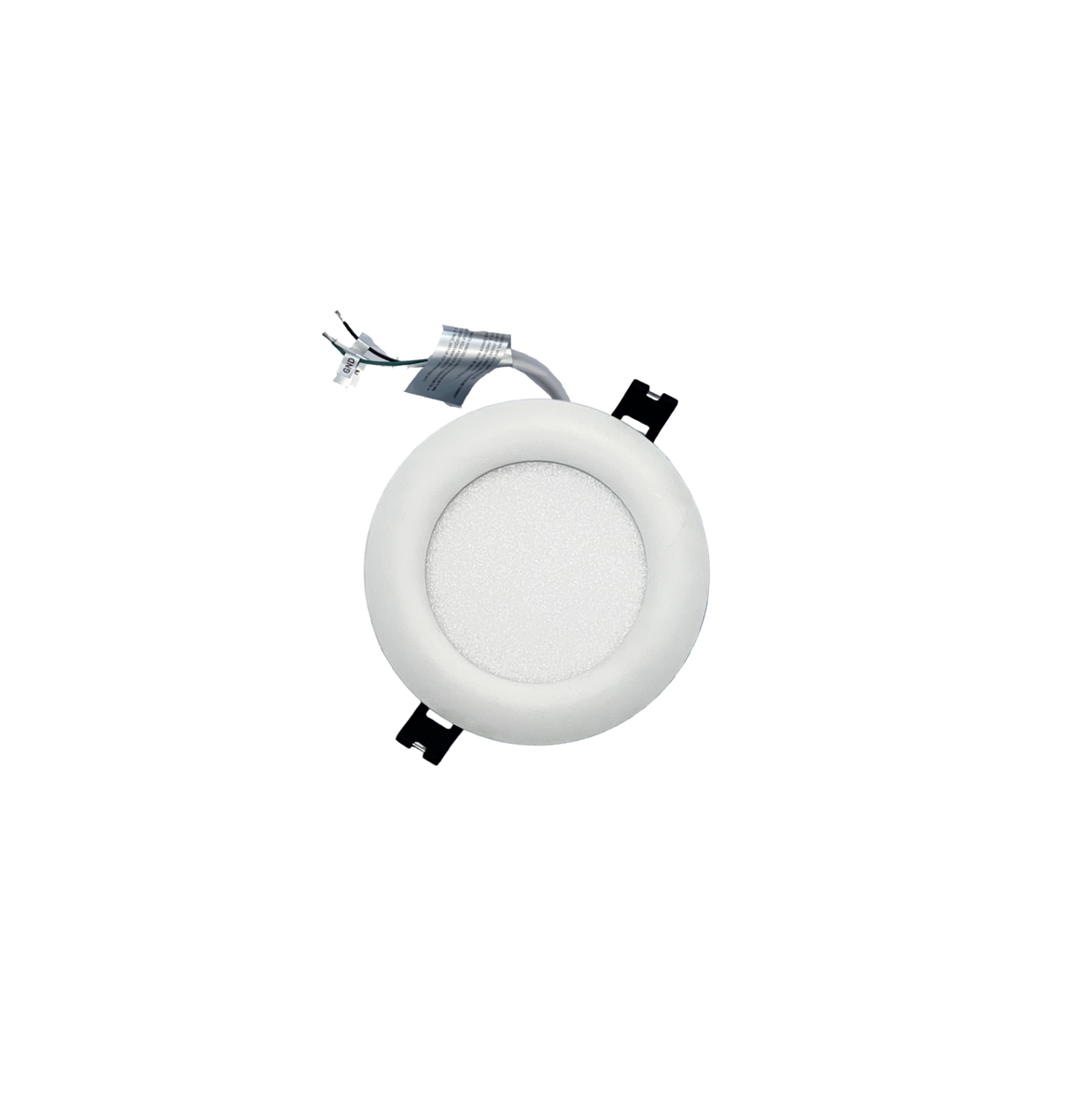

4 Inch — 12W | Cut Hole: 3.75"
| Model | Trim | CCT | Junction Box |
|---|---|---|---|
| DWL014030W | White | 3000K | No |
| DWL014030W-JB | White | 3000K | Yes |
| DWL014040W | White | 4000K | No |
| DWL014040W-JB | White | 4000K | Yes |

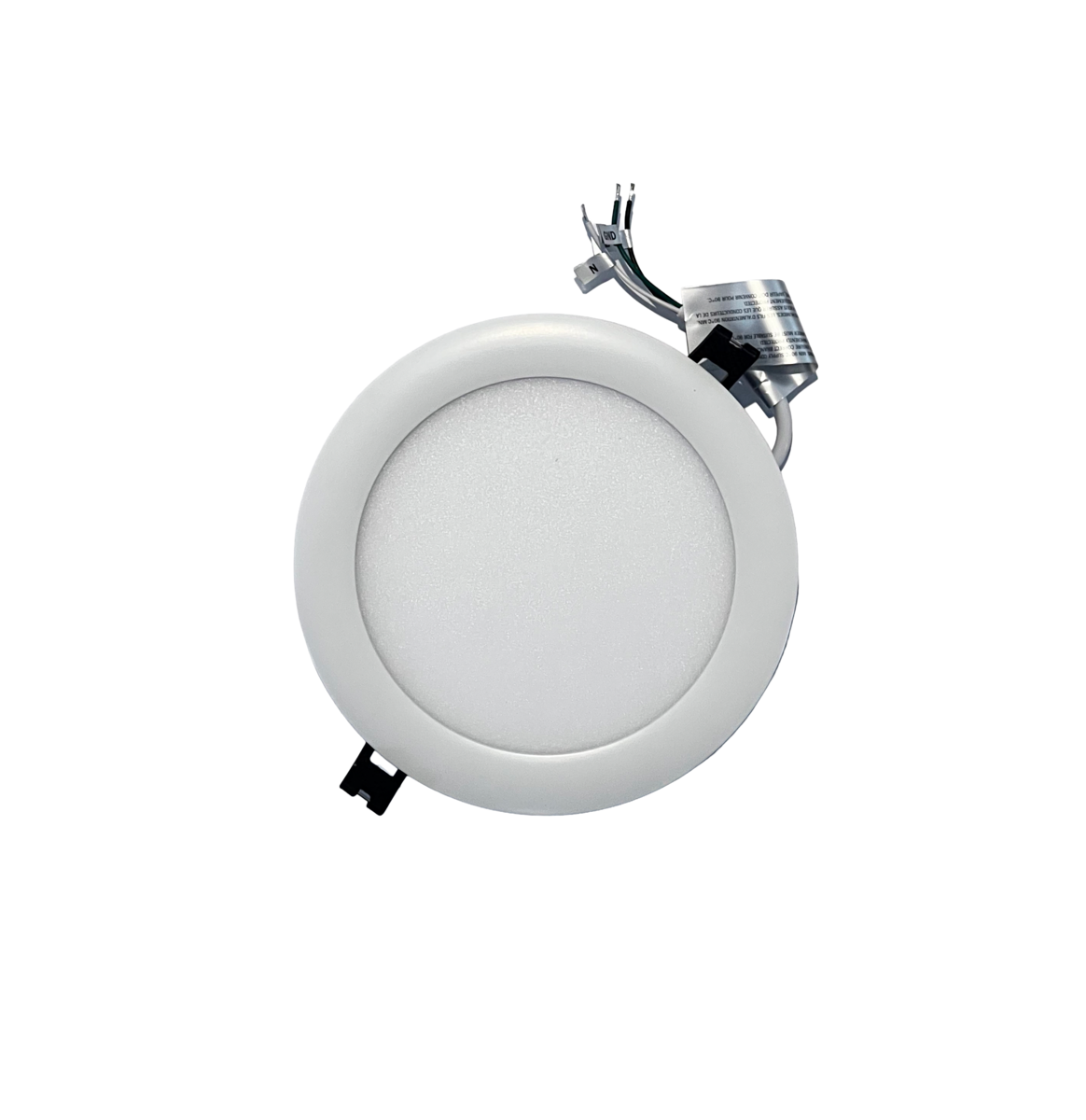

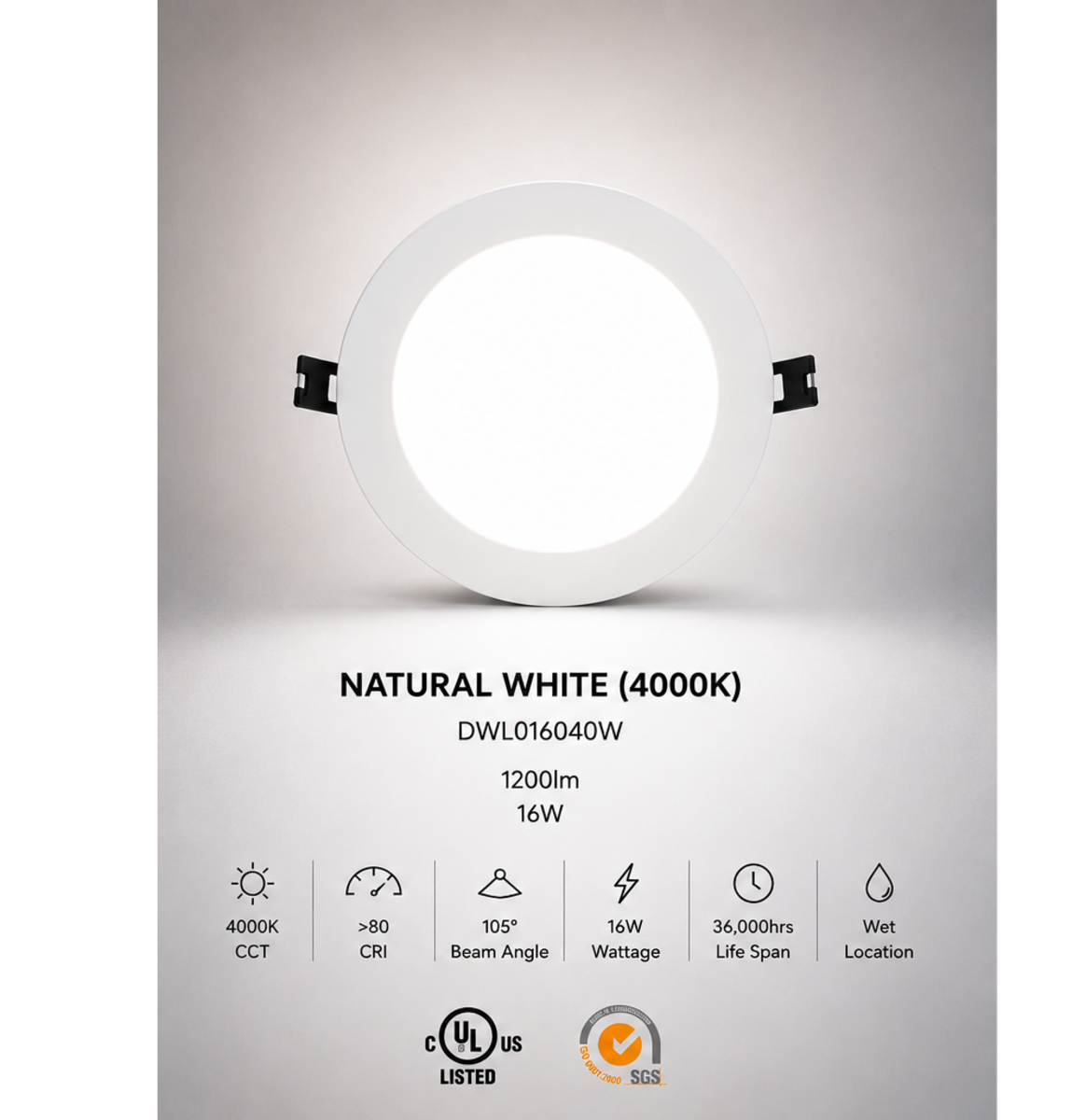

6 Inch — 16W | Cut Hole: 6.25"
| Model | Trim | CCT | Junction Box |
|---|---|---|---|
| DWL016030W | White | 3000K | No |
| DWL016030W-JB | White | 3000K | Yes |
| DWL016040W | White | 4000K | No |
| DWL016040W-JB | White | 4000K | Yes |
Specifications:
| 4 Inch | 6 Inch | |
|---|---|---|
| Power | 12W | 16W |
| Lumens (3000K) | 800 lm | 1100 lm |
| Lumens (4000K) | 900 lm | 1200 lm |
| Candela (3000K) | 310 cd | 420 cd |
| Candela (4000K) | 330 cd | 460 cd |
| Height | 1" | 1.1" |
| LED Quantity | 66 pcs | 90 pcs |
| Cut Hole Size | 3.75" | 6.25" |
| LED Type | Everlight | Everlight |
| Input Voltage | 120V AC | 120V AC |
| Frequency | 60 Hz | 60 Hz |
| Power Factor | >0.9 | >0.9 |
| CRI | >80 | >80 |
| Beam Angle | 105° | 105° |
| CCT | 3000K / 4000K | 3000K / 4000K |
| Dimmable | Yes | Yes |
| Lifespan | 36,000 hrs | 36,000 hrs |
Key Features:
- Direct 120V connection — no driver or transformer required
- Ultra-thin profile — fits standard 4" octagon and junction boxes
- IC-rated and airtight — safe for insulated ceiling contact
- Fully waterproof — wet location rated for showers, bathrooms, and outdoor covered areas
- Indoor and outdoor rated
- Everlight LEDs — 36,000 hour lifespan
- Wide 105° beam angle for broad, even illumination
- Dimmable — compatible with standard 120V dimmers
- Available with or without integrated junction box
- UL Listed · SGS Certified
